380V Automatic Hydraulic Cutting Corrugated Roofing Machine For Sinus Profile
1. Description of Corrugated Roofing Machine
Corrugated sheet as a durable and economical product, always popular for customers and makes huge demand in worldwide markets.
We knows well on corrugated machine, we offer 76.2mm(3 inch) pitch as standard profile and also customize heavy duty profile which thickness up to 4mm for agricultural solutions.
This serious including heavy duty profile and standard 76.2mm(3 inch) pitch with 914mm(3ft), 1000mm, 1220mm(4ft) width available for both Coated Coil (PPGI/PPGL) and Galvanized Coil (GI/GL).
2. Specifications of Corrugated Roofing Machine
| Main motor power | 5.5 KW |
| Roller material | 45# steel with chromed treatment |
| Roller shaft material | 45# steel with quenched treatment |
| Work speed | 0-20 m/min |
| Dimesion | 8500*1650*1500mm |
| Structure | Middle plate welded frame structure |
| Main frame | 350 H steel welded |
| Drive mode | Chains drive |
| Control system | PLC control system |
| Hydraulic station | 4kw with cooling fan system or not |
| Cutting type | Hydraulic cutting |
| Cutter material | GCr12 chromed and quenched for good hardness and using |
3. Advantages of Corrugated Roofing Machine
o Customized profile and suggestions.
o Material handling solutions.
o Anti-capillary grooves, Embossing, Logo Marking.
o Full safety protection with cover guard, emergency switches, mistake proofing program.
4. FAQ
● What is your machine warranty?
some quick-wear parts will be container together with machine.
if some parts damaged within one year, we will send new one to you for free, just freight up to you.
● Is it complicated to operate the machine?
It is very easy, the machine is automatic, one or two persons can operate it, we provide machine use training.
● How many different profile roofing one machine can produce?
One machine can produce one or two different profiles.

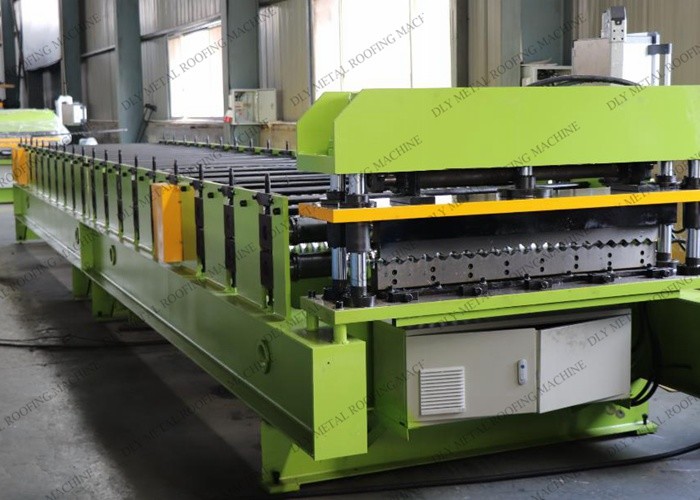

5. details of Corrugated Roofing Machine
