Automatic 1250mm Hydraulic Cutting Corrugated Roofing Machine With PLC
1. Description of Corrugated Roofing Machine
Corrugated sheet as a durable and economical product, always popular for customers and makes huge demand in worldwide markets.

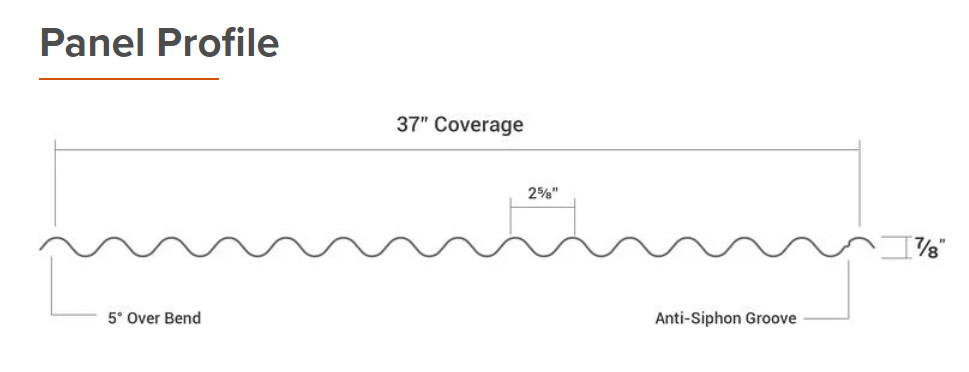

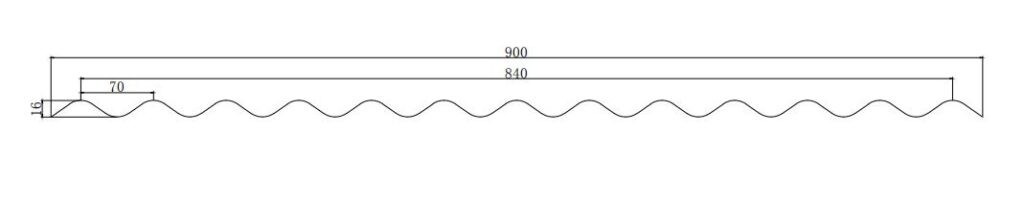

We knows well on corrugated machine, we offer 76.2mm(3 inch) pitch as standard profile and also customize heavy duty profile which thickness up to 4mm for agricultural solutions.
This serious including heavy duty profile and standard 76.2mm(3 inch) pitch with 914mm(3ft), 1000mm, 1220mm(4ft) width available for both Coated Coil (PPGI/PPGL) and Galvanized Coil (GI/GL).
2. Specifications of Corrugated Roofing Machine
| Product Name | Item | Description |
| Corrugated Sheet Roll Forming Machine | Production Material(mm) | 1250×(0.3～1.0)×L, PPGI |
| Forming speed | 20 m/min |
| Number of stations | 18 stations |
| Roller stations type | Side Wall |
| Main motor power | 7.5KW |
| Power of hydraulic station | 3.0KW |
| Roller material | high-quality GCr15 forged steel
with hard chrome-plated hardware
HRC 58-62 |
| Shaft diameter | 76mm |
| Shaft material | high-quality steel 45 quenched
and tempered after finishing treatment |
| Hydraulic station pressure | 10～15 Mpa |
| Cutter material | Cr12 quenched |
| Decoiler | 10 Ton Automatic decoiler with loading car |
| Electronic controlling system | Full-frequency PLC controlling system,
error of cutting length ≤ 2mm |
| Stacker | 8 meters Auto stacker |
| Cutting | Post cutting with hydraulic driving |
3. Advantages of Corrugated Roofing Machine
o Customized profile and suggestions.
o Material handling solutions.
o Anti-capillary grooves, Embossing, Logo Marking.
o Full safety protection with cover guard, emergency switches, mistake proofing program.
4. Main Character of Corrugated Sheet Roll Forming Machine
- Simple structure, good appearance since the whole machine is used profiled steel structure and wholly manufacturing after welding, in order to make it running stable and reliable.
- Completely automatic cutting, accurate length, and position trim cutting for the rear of profile sheets, no deformation.
- Easy installation, good performance for manufacturing in the factory.
- Low noise, high efficiency.

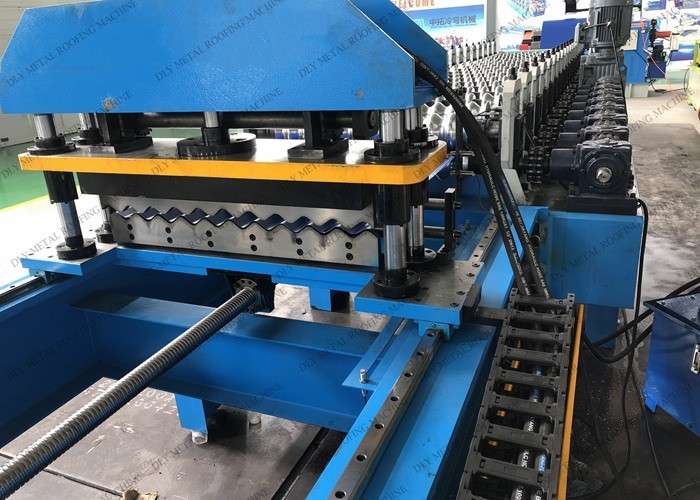

5. details of Corrugated Roofing Machine
